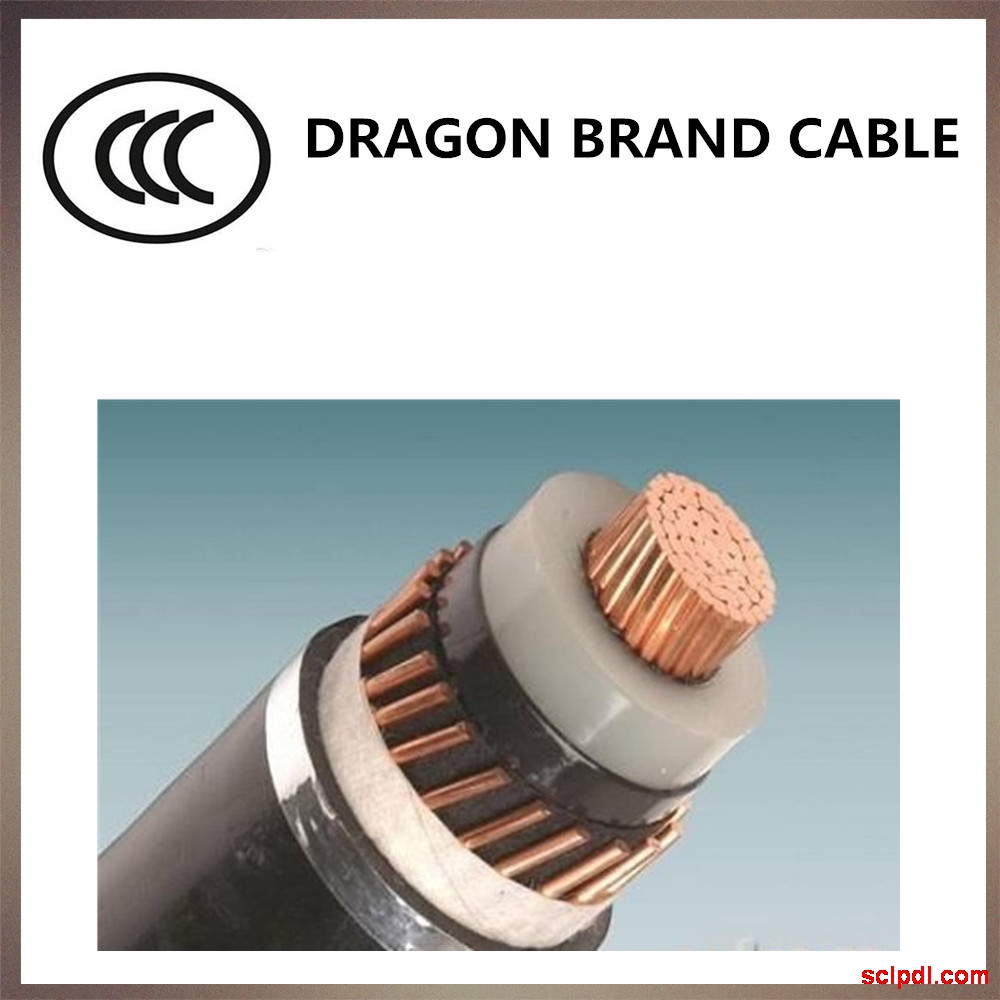

YJV32, YJLV32, Cu or Al /XLPE/CTS or CWS/PVC/SWA/PVC |
|
||
Voltage |
1.8/3kV, 1.9/3.3kV, 6/10kV, 6.35/11kV, 8.7/10kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV, 26/35kV |
|
|
Cores |
1C and 3C |
|
|
Range of Nominal cross section |
25 mm2 ~ 630 mm2 |
|
|
Application |
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kV~26/35kV. For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain force. |
|
|
Standard |
IEC 60502, BS 6622, GB/T12706 |
|
|
Constructions |
Conductor: |
Copper or Aluminium Compacted |
|
Insulation: |
XLPE |
|
|
Metallic screen: |
Copper tape or Copper wire |
|
|
Armour: |
SWA (Remark: for single core the armour should be AWA or SSWA) |
|
|
Sheath: |
PVC, PE or LSZH |
|
|
Max. Operating Temperature |
90 ℃ |
|
|
Packing |
Steel drum or as per requirement |
|
|
Production Capacity |
10 kilometer / day |
|
|
MOQ |
500~1000 meters for 6.35/11kV cable, 500 meters for other voltage |
|
|
Delivery time |
10 ~ 15 working days |
|
|
Remark |
The cable can be of flame retardance, fire resistance, environment friendly or other property |
|
