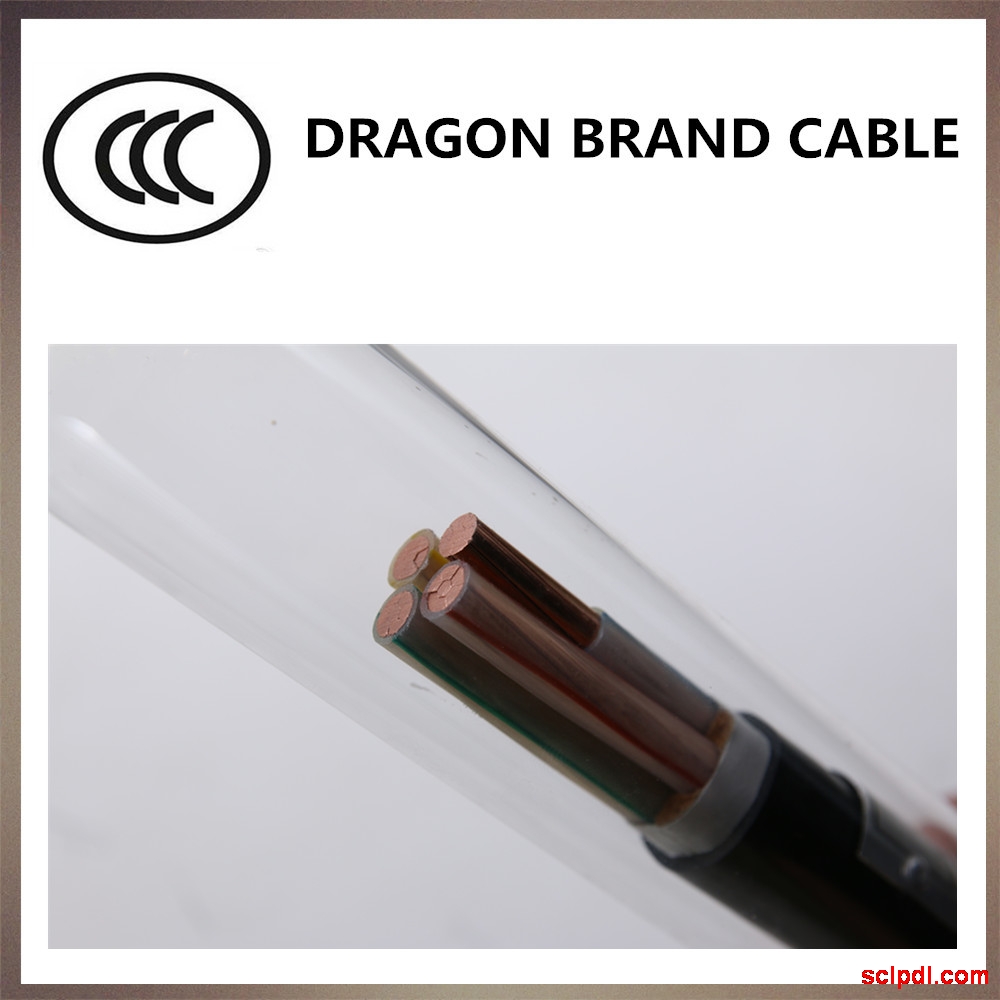

PVC insulation Power Cable 0.6/1 kV (without armour)
|
|
Type
|
NYY, VV, VLV, Cu/PVC/PVC, Al/PVC/PVC
|
Voltage
|
0.6/1 kV
|
Cores
|
1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E
|
Range of Nominal cross section
|
1.5 mm2 ~ 630 mm2
|
Application
|
It applies to electrical power transmission and distribution lines
with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor
and indoor installation in damp and wet locations, laid directly in
the ground (when well protect in ducts, in trenches and in steel
support brackets. )
|
Standard
|
IEC 60502, BS 7870, GB/T12706
|
Constructions
|
Conductor
|
Class 1/2 annealed bare copper solid or
strands
|
Insulation
|
PVC/XLPE
|
Sheath
|
PVC or XLPE
|
Max. Operating Temperature
|
70 ℃, can be 90 ℃ and 110 ℃ as per requirement
|
Packing
|
Wooden drum or as per requirement
|
Production Capacity
|
30 kilometer / day
|
MOQ
|
1000 meters for small size, 500 meters for big size.
|
Delivery time
|
10 ~ 15 working days
|
Remark
|
The cable can be of flame retardance, fire resistance, environment
friendly or other property
|
